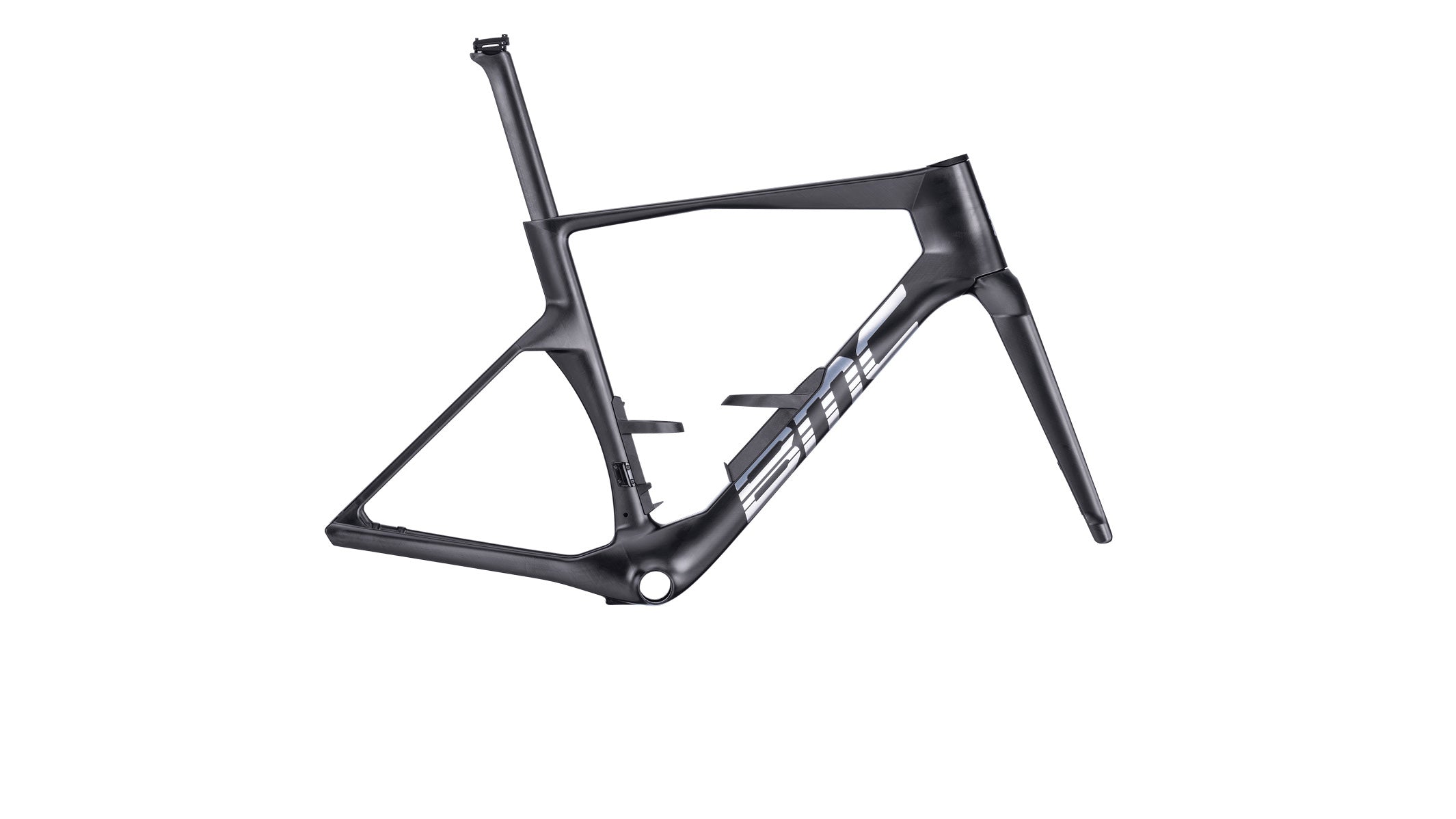

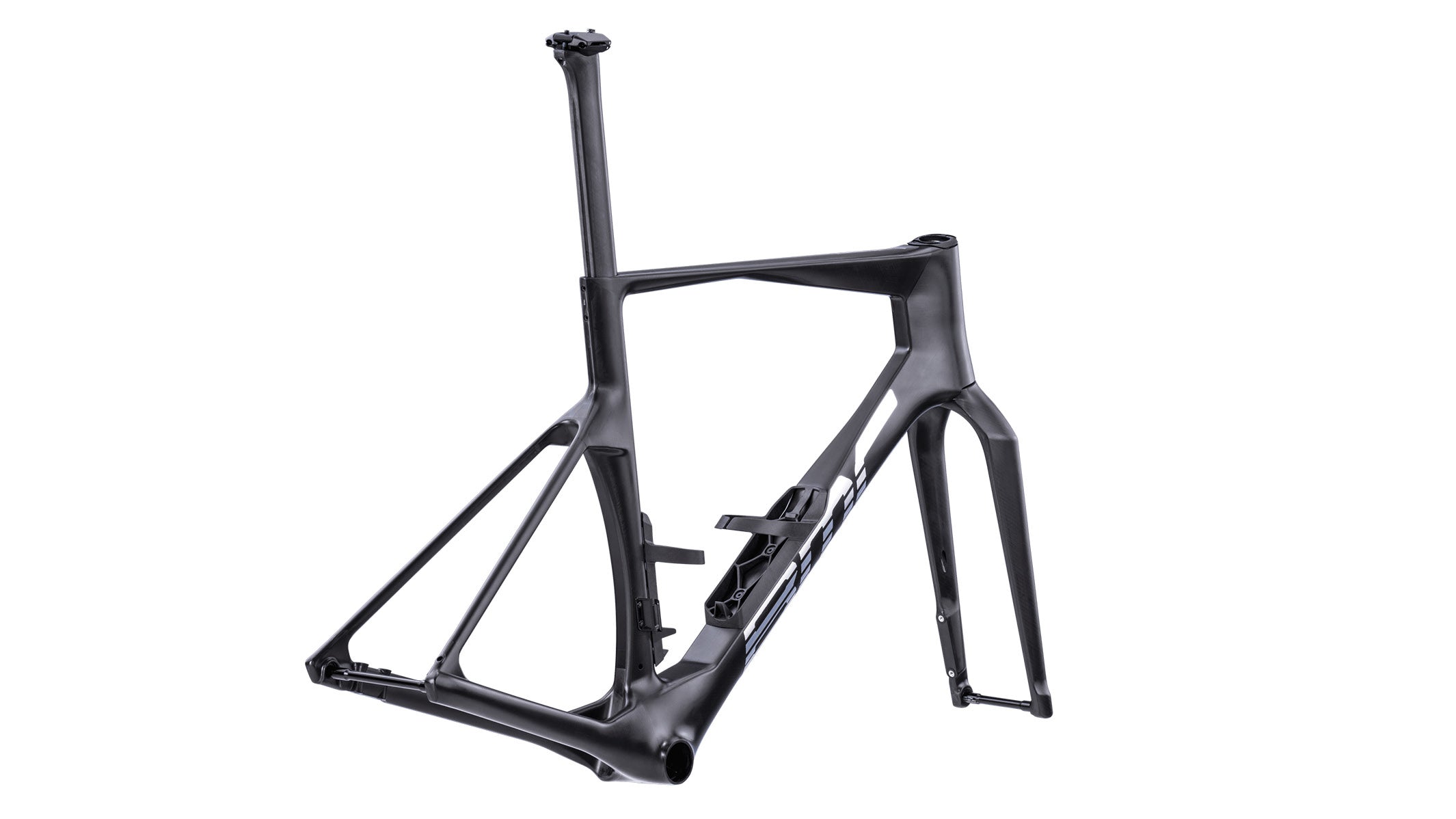

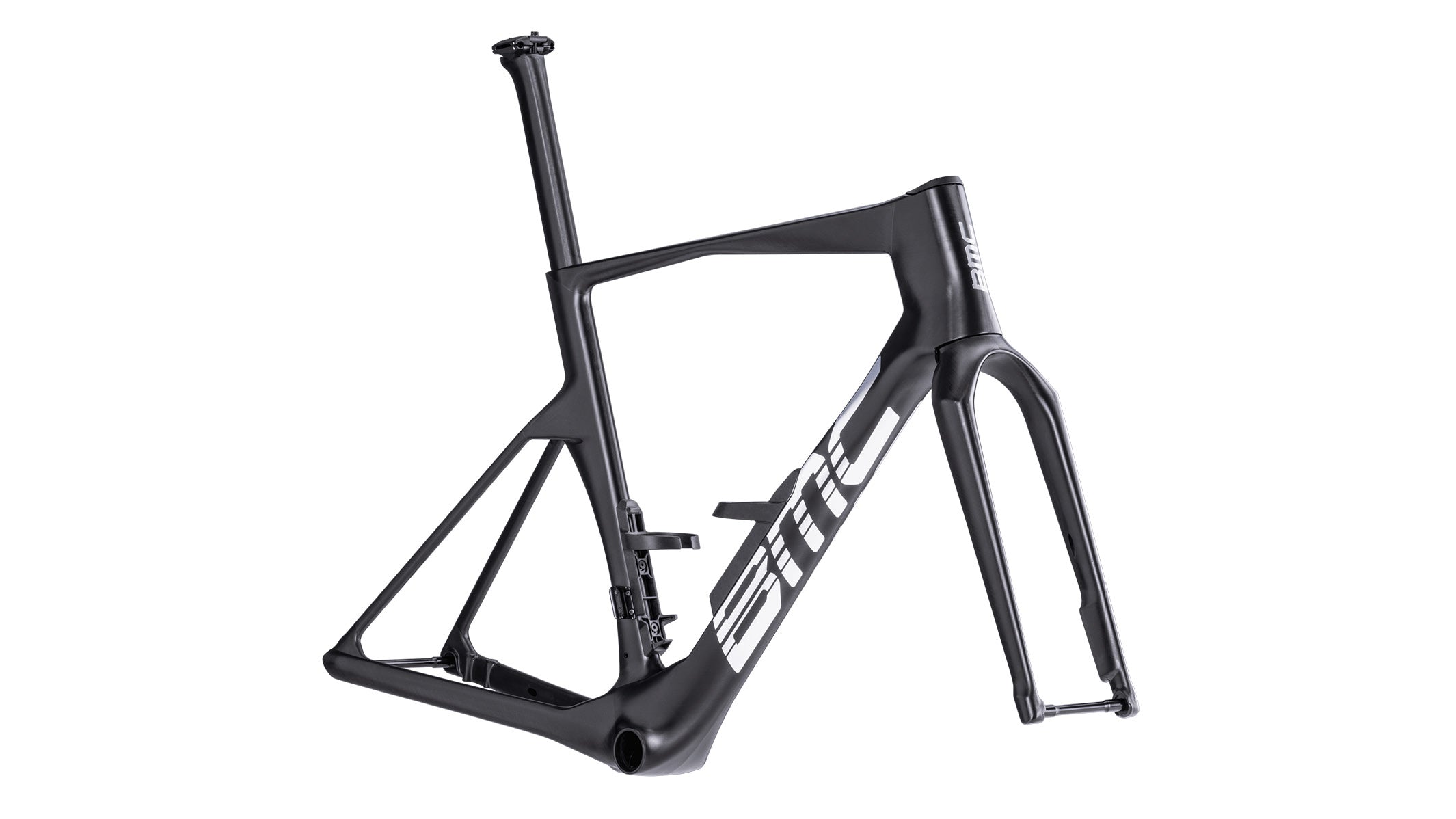

Teammachine R Mpc. Frameset

The Teammachine R Mpc. is more than just a bike – it’s a statement of innovation and speed. What sets the Mpc. edition apart is its attention to detail: unparalleled precision in the carbon layup, zero excess material, and a flawless surface that requires no rework. Handmade in Europe by master craftsmen, ensures that every Teammachine R Mpc. is a masterpiece of design and engineering, produced in limited quantities and identified by a unique number plate to emphasize its exclusivity.

Teammachine R Mpc., a cutting-edge race bike that sets a new standard in speed, precision, and performance. Building on the already leading-edge platform, the Masterpiece treatment elevates the Teammachine R 01 to even greater heights.

USD 8,999.00

SKU: 30005779

Size —

Preorder - dispatch may take up to 60 days

Compatible Parts & Accessories

[{"id":42173345923151,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005779","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 47","public_title":"47","options":["47"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512081","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42173345988687,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005780","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 51","public_title":"51","options":["51"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512074","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42173346185295,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005781","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 54","public_title":"54","options":["54"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512067","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42173346381903,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005782","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 56","public_title":"56","options":["56"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512050","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42173347233871,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005783","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 58","public_title":"58","options":["58"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512043","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42173347397711,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005784","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R Mpc. Frameset - 61","public_title":"61","options":["61"],"price":899900,"weight":9000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"7630906512036","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Fork:
Teammachine R Mpc Premium Carbon | ICS Technology - Stealth Cable Routing | Stealth Dropout Design | Flat mount Disc | 12 x 100mm Thru-Axle

Seat

Seatpost:
Teammachine R Mpc Premium Carbon | 10mm Offset

Accessories

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
1640 g | including headset, bottle cages and hardware (Frame 810 g | Fork 390 g | Seatpost 150 g)

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166 - 174	172 - 180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
BB Drop	69	69	69	69	69	69
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	185	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Top Tube	522	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030

BMC Mpc DNA - EN

Pick your own Cockpit

ICS Carbon Aero

ICS Carbon Aero features a progressive aerodynamic shaping with a reduced frontal section to match the drag-reducing design of our performance frames.

Buy Now

ICS Carbon Evo

Allying performance with usability, the ICS Carbon Evo Cockpit is engineered at the sweet spot for performance-oriented riders.

Buy Now

ICS Carbon

ICS Carbon, the first one-piece cockpit in the BMC range with an incredibly low weight, high stiffness with superior performance and aesthetics.

Buy Now

Innovation

Halo Fork

The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame.

Aerodynamics Redefined

Each component of the Teammachine R is designed to minimize drag and maximize efficiency, with all these technologies and characteristics elevated on the Masterpiece edition.

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow.

The Mpc. Touch

Mpc. – the result of removing all compromises in material, engineering processes and manufacturing. Crafted by carbon fiber masters in limited quantities, each Masterpiece is a unique blend of cutting-edge technology and unmatched craftsmanship.
