Name: Roadmachine AL X TWO
Brand: BMC
SKU: 30004978
Price: 2499.0 USD
Availability: OutOfStock

Roadmachine AL X TWO | BMC | bikes | Road, Road | Endurance

Black / Turquoise

SHIMANO GRX
XRD-522 Wheelset
Fender, Rack and Cargo Mounts

USD 2,499.00

SKU: 30004978

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40925532618831,"title":"XS","option1":"XS","option2":null,"option3":null,"sku":"30004978","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine AL X TWO - XS","public_title":"XS","options":["XS"],"price":249900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906506417","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925532651599,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30004979","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine AL X TWO - S","public_title":"S","options":["S"],"price":249900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906506400","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925533077583,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30004980","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine AL X TWO - M","public_title":"M","options":["M"],"price":249900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906506394","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925534486607,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30004981","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine AL X TWO - L","public_title":"L","options":["L"],"price":249900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906506387","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925534715983,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30004982","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine AL X TWO - XL","public_title":"XL","options":["XL"],"price":249900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906506370","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

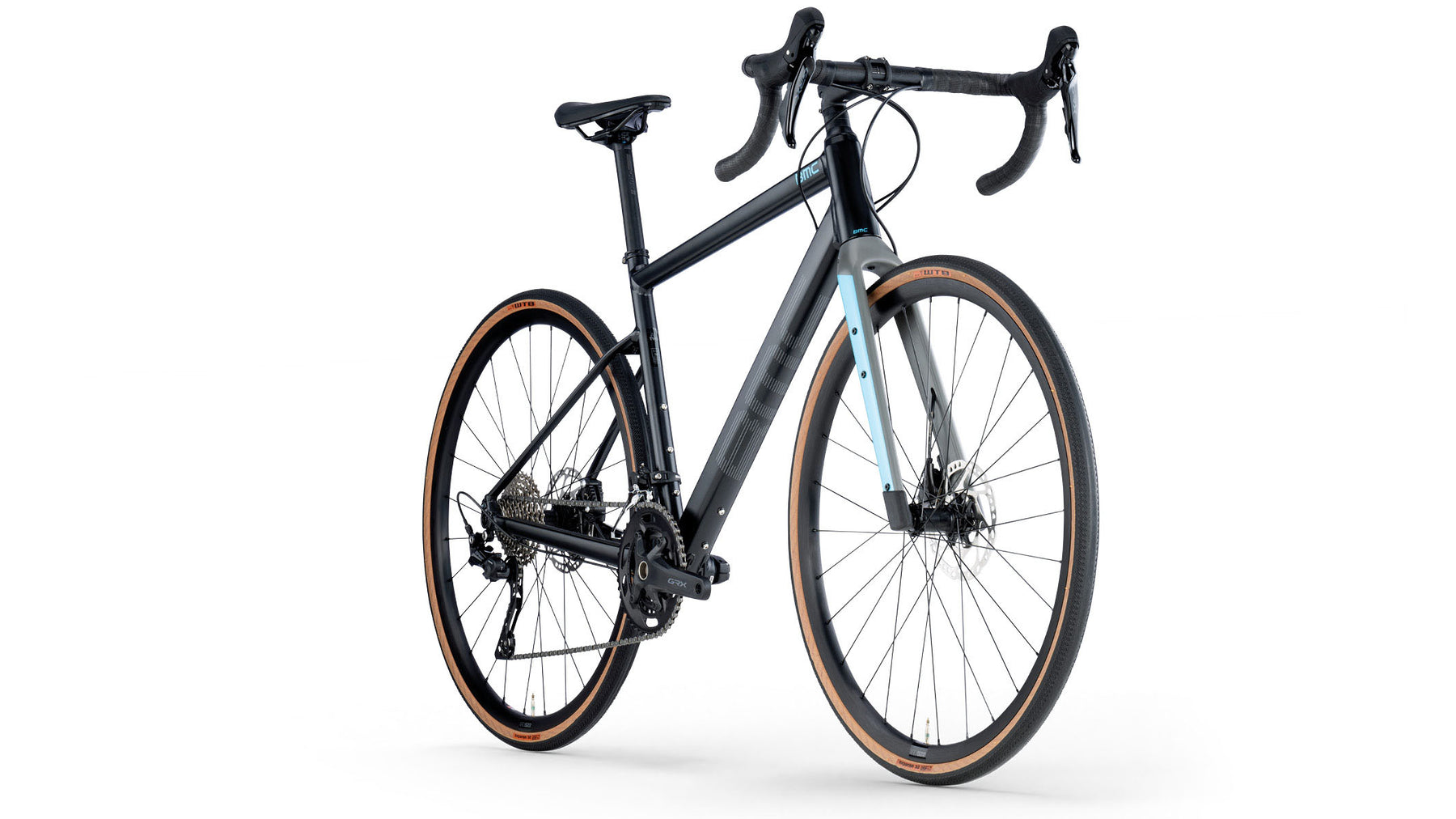

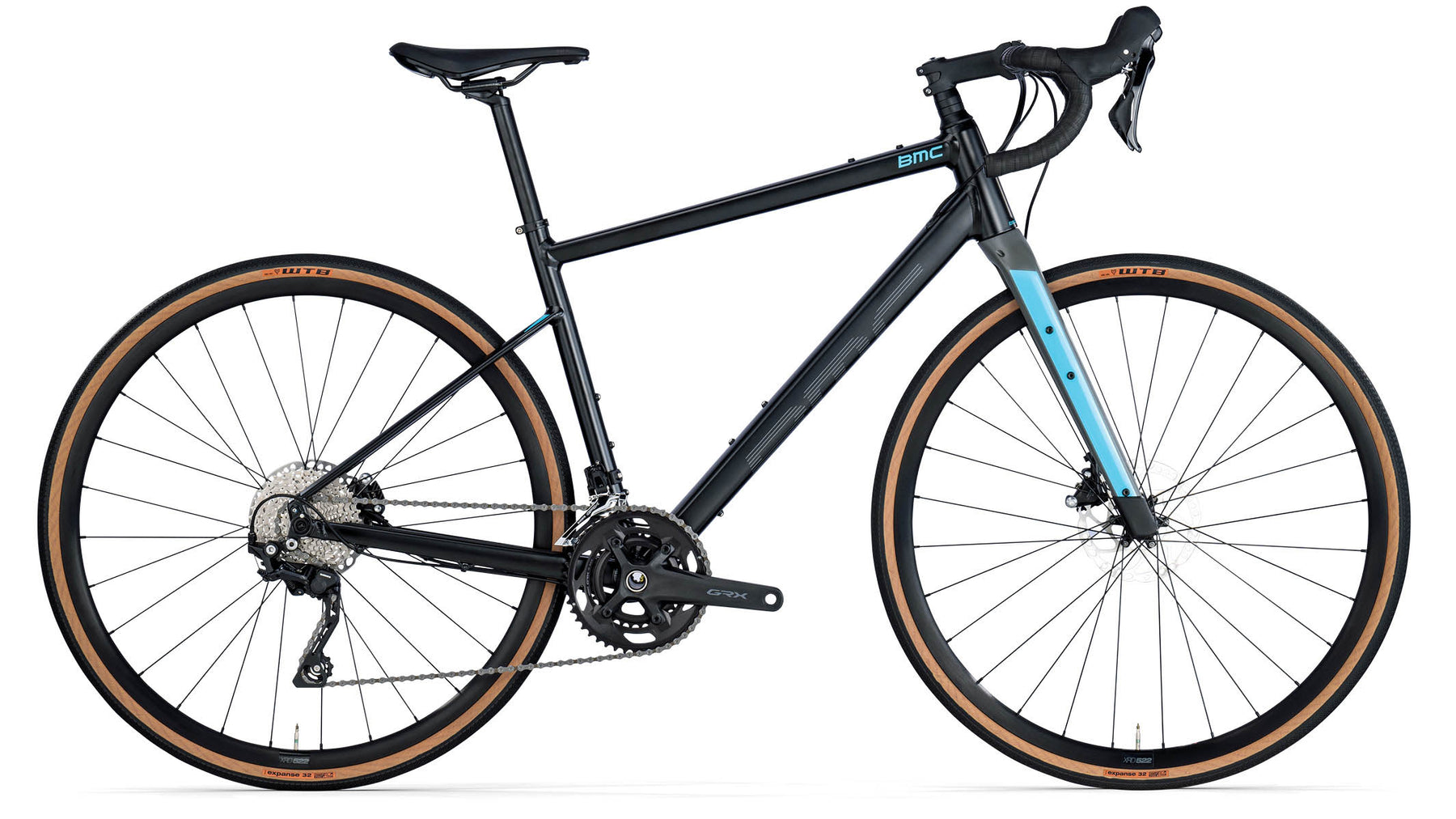

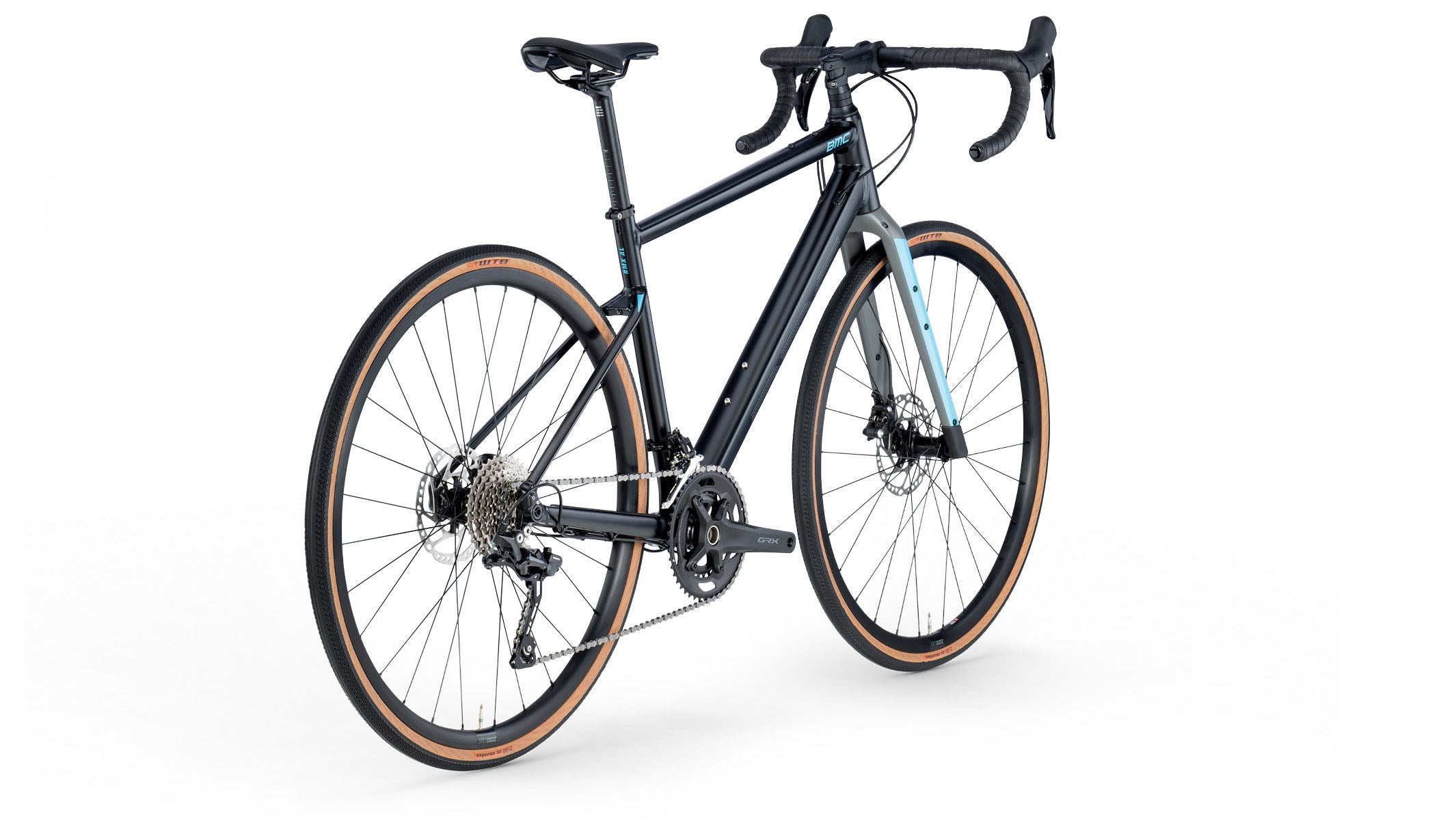

The Roadmachine AL X TWO features a robust frameset that handles all the rough stuff. The Premium Aluminium frame and carbon fork were designed using TCC Gravel technology, with Gravel+ geometry. They feature fender, rack and cargo mounts, hub dynamo cable routing, a round seatpost and a mixture of Shimano’s GRX and Deore components and 32mm WTB tires on XRD-522 wheels.

Technical Overview

Frameset

Cockpit

Stem:
BMC RSM 01

Handlebar:
BMC RAB 03 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
BMC RSP 03

Saddle:
Selle Royal

Drivetrain

Crankset:
SHIMANO GRX 600

Chainrings:
SHIMANOrings

Cassette:
SHIMANO Deore

Cassette Size:
11-36T

Chain:
SHIMANO

Rear Derailleur:
SHIMANO GRX 400

Shifters:
SHIMANO GRX 400

Gears:
2 x 10

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO GRX (BR-RX400)

Rotors:
SHIMANO SM-RT64

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
XRD-522 | Tubeless Ready | 25 mm

Hubs (F/R):
XRD-522

Tires:
WTB Expanse | 32mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
45mm

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	XS	S	M	L	XL
Rider Height	< 165	162 - 172	170 - 182	180 - 192	>190
Reach	390	400	410	420	430
Stack	525	550	580	610	640
Bar Drop	125	125	125	125	125
Bar Reach	70	70	70	70	70
Bar Width	400	420	420	420	440
BB Drop	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175
Fork Length	410	410	410	410	410
Fork Rake	45	45	45	45	45
Front Center	608	626	647	668	689
Head Tube	92	118	150	182	214
Head Tube Angle	70	70	70	70	70
Rear Center	430	430	430	430	430
Seat Angle	74	74	74	74	74
Seat Tube	430	445	475	505	540
Seatpost Length	350	350	350	350	350
Seatpost Offset	15	15	15	15	15
Standover Height	720	738	768	797	830
Stem Angle	±8	±8	±8	±8	±8
Stem Length	90	90	100	110	110
Top Tube	540	558	576	595	614
Trail	78	78	78	78	78
Wheelbase	1028	1047	1068	1089	1110
