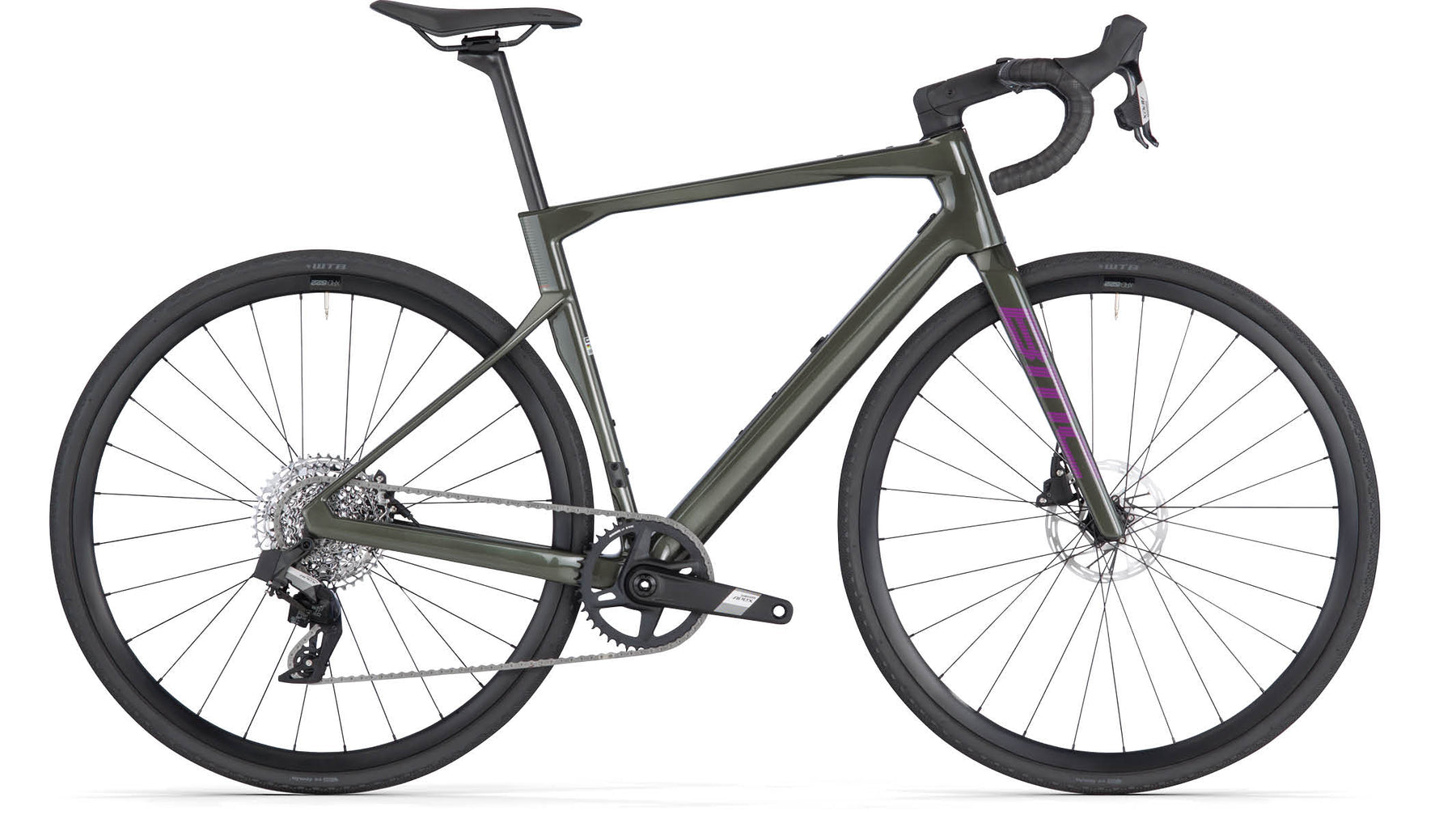

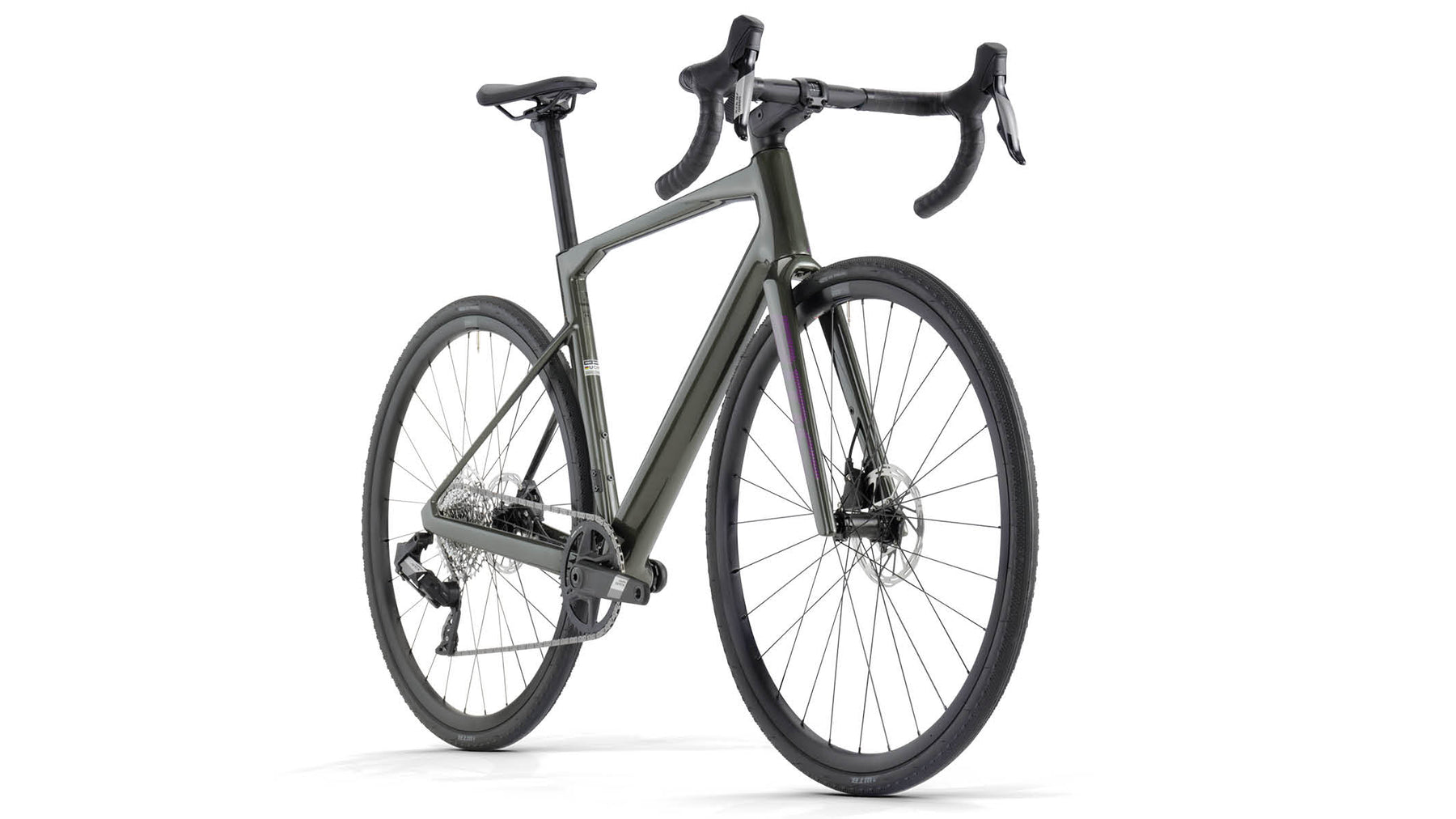

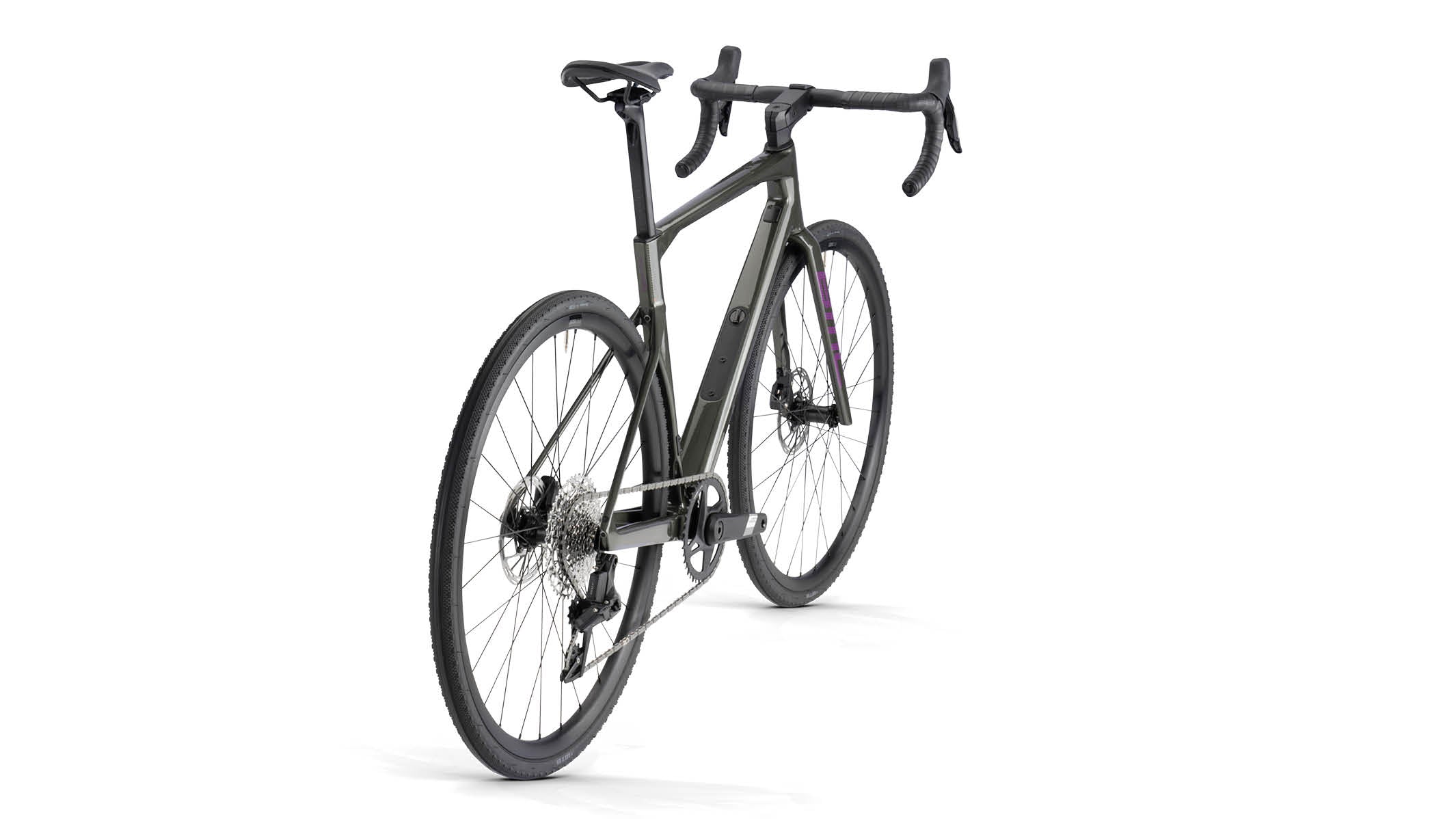

Name: Roadmachine X THREE
Brand: BMC
SKU: 30005296
Price: 4299.0 USD
Availability: InStock

Roadmachine X THREE | BMC | bikes | Road, Road | Endurance

Steel Green / Purple

SRAM Apex XPLR eTap AXS
XRD-522 Wheelset
Downtube Storage

USD 4,299.00

SKU: 30005296

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40925832216655,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005296","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine X THREE - 47","public_title":"47","options":["47"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508695","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925832249423,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005297","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine X THREE - 51","public_title":"51","options":["51"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":13,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508688","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925832314959,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005298","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine X THREE - 54","public_title":"54","options":["54"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":36,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508671","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925832347727,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005299","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine X THREE - 56","public_title":"56","options":["56"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":14,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508763","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925832380495,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005300","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine X THREE - 58","public_title":"58","options":["58"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508855","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925832446031,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005301","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine X THREE - 61","public_title":"61","options":["61"],"price":429900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906508848","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

More capable, more comfortable, more adventurous, and more fun, the Roadmachine X is your invitation to go further. The complete build features a 1x SRAM Apex XPLR eTap AXS wireless groupset, XRD-522 wheels and gravel-ready 34mm WTB tires paired with the frameset that has full internal cable routing, a Premium Carbon D-Shape seatpost and ICS MTT suspension stem. It’s the Roadmachine that you’ve always wanted and needed.

Technology

ICS MTT Suspension Stem

More comfort on all surfaces. Using Redshift’s proven ShockStop technology, the BMC engineers were able to design an advanced and finely crafted suspension stem. Namely, the ICS MTT Suspension Stem gives riders up to 20mm of tunable suspension.

Fender Mounts

Our most winterproof bike is full-fender compatible, featuring mounting points on fork and frame for bolt-on fenders, plus BMC designed D-fender compatibility for the most simplified and lightweight approach to reducing road spray.

D-Shape Seatpost

The latest evolution of our signature D-shape seatpost is compatible with the Integrated Rear Light for safety and the D-fender to prevent road spray while still retaining its excellent aerodynamic performance and compliance.

TCC Endurance

The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.

Technical Overview

Frameset

Frame:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

Fork:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 X Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Terra Argo X5 | 150mm

Drivetrain

Crankset:
SRAM Apex 1 DUB WIDE

Chainrings:
42T

Cassette:
SRAM Apex AXS XPLR (XG-1231)

Cassette Size:
11-44T

Chain:
SRAM Apex

Rear Derailleur:
SRAM Apex XPLR eTap AXS

Shifters:
SRAM Apex eTap AXS

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM Apex eTap AXS

Rotors:
SRAM Paceline

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
XRD-522 | Tubeless Ready | 25 mm

Hubs (F/R):
XRD-522

Tires:
WTB Byway | Distance+ Compound | TCS Light bead | Tubeless Ready | 34mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
40mm

Weight without Pedals:
8.9 Kg

ASTM Classification:
Level 2

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<160	158-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	117	117	117	117	117	117
Bar Reach	76.9	76.9	76.9	76.9	76.9	76.9
Bar Width	400	420	420	420	420	440
BB Drop	75	75	75	75	75	75
Crank Length	170	170	172.5	172.5	175	175
Fork Length	379	379	379	379	379	379
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4	71.4	72.2	72.2	72.2	72.2
Rear Center	415	415	415	415	415	415
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	414	461	488	508	529	550
Seatpost Length	280	320	360	360	400	400
Seatpost Offset	15	15	15	15	15	15
Standover Height	726	762	786	807	828	849
Stem Angle	0	0	0	0	0	0
Stem Length	80	90	100	110	110	110
Top Tube	520	537	546	559	571	581
Trail	63	63	63	63	63	63
Wheelbase	982	1000	997	1010	1023	1036
