Name: Trackmachine 01 FRS
Brand: BMC
SKU: 30002586
Price: 4499.0 USD
Availability: InStock

Trackmachine 01 FRS | BMC | frames | Track, Track | Racing

Carbon / White

Vmax Aero Stem
Vmax Aero Post
P2P Fit Adjustment Technology

USD 4,499.00

SKU: 30002586

Size —

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40925089857615,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30002586","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Trackmachine 01 FRS - S","public_title":"S","options":["S"],"price":449900,"weight":9000,"compare_at_price":null,"inventory_quantity":65,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886405","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925090054223,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30002587","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Trackmachine 01 FRS - M","public_title":"M","options":["M"],"price":449900,"weight":9000,"compare_at_price":null,"inventory_quantity":27,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886399","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40925090283599,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30002588","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Trackmachine 01 FRS - L","public_title":"L","options":["L"],"price":449900,"weight":9000,"compare_at_price":null,"inventory_quantity":11,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027886382","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

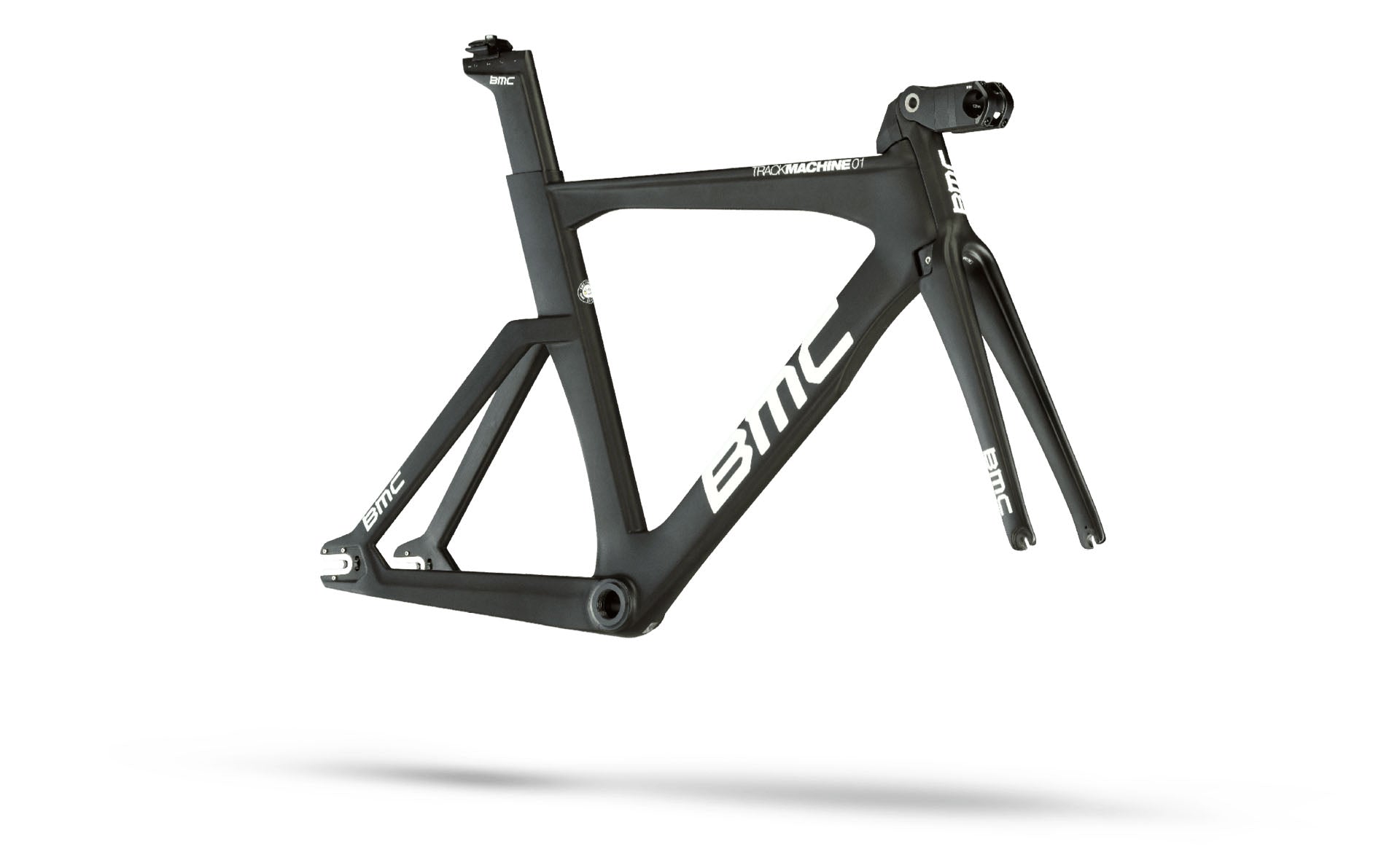

The Trackmachine 01 FRS is the highly refined, stunningly engineered core of your ultimate track bike. With a rich heritage on the boards, its efficiency and adjustability continue to impress, and it's a bike that can quickly and easily be adapted for numerous track disciplines. Built from Premium Carbon and invested with our Vmax Aero Design technology, it features a Hinge Design fork, sliding rear dropouts, a threaded bottom bracket shell, plus an adjustable Aero Seatpost and integrated stem.

Technology

Vmax Technology

P2P x subA: The formula for high-performance cycling – Position-to-Perform maximizes the bike’s adjustability to your riding position, while SubA innovation creates an incredibly fast frame profile.

P2P Integrated Seatpost

The P2P integrated aero seatpost offers four different saddle attachment options for maximum rider position adjustability.

Adjustable Dropouts

Replaceable and adjustable all stainless steel dropouts.

P2P Modular Stem

The P2P modular stem is adjustable for length and height, delivering your perfect position, optimized stiffness and steering precision.

Technical Overview

Frameset

Frame:
Trackmachine 01 Premium Carbon with Vmax Aero Design P2P Positioning System | Sliding Dropouts

Fork:
Trackmachine 01 Premium Carbon with Vmax Aero Design Hinge-Design

Cockpit

Stem:
Vmax Aero Integrated Design | P2P Technology

Seat

Seatpost:
Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem

Additional Information

Tire Clearance:
23mm

ASTM Classification:
Level 1

System Weight Limit:
150kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L
Rider Height	<173	170-185	>183
Reach	390	408	430
Stack	471	506	544
BB Drop	50	58	58
Fork Length	363	363	363
Fork Rake	48	48	48
Front Center	586	604	626
Head Tube	94	134	163
Head Tube Angle	72	72	72
Rear Center	390-420	390-420	390-420
Seat Angle	74	74	74
Seat Tube	505	542	582
Seatpost Length	300	300	300
Seatpost Offset	30 / 10 / -10 / -30	30 / 10 / -10 / -30	30 / 10 / -10 / -30
Standover Height	751	779	817
Stem Angle	p2p Adjustable	p2p Adjustable	p2p Adjustable
Stem Length	p2p Adjustable	p2p Adjustable	p2p Adjustable
Top Tube	525	553	585
Trail	59	59	59
Wheelbase	963	981	1003
