You’re only fast when you can stay aero. That principle sits at the core of the Speedmachine 01, our fastest triathlon frame engineered for sustained speed. Developed together with Red Bull Advanced Technologies, this race bike frame builds aerodynamics around adjustability.

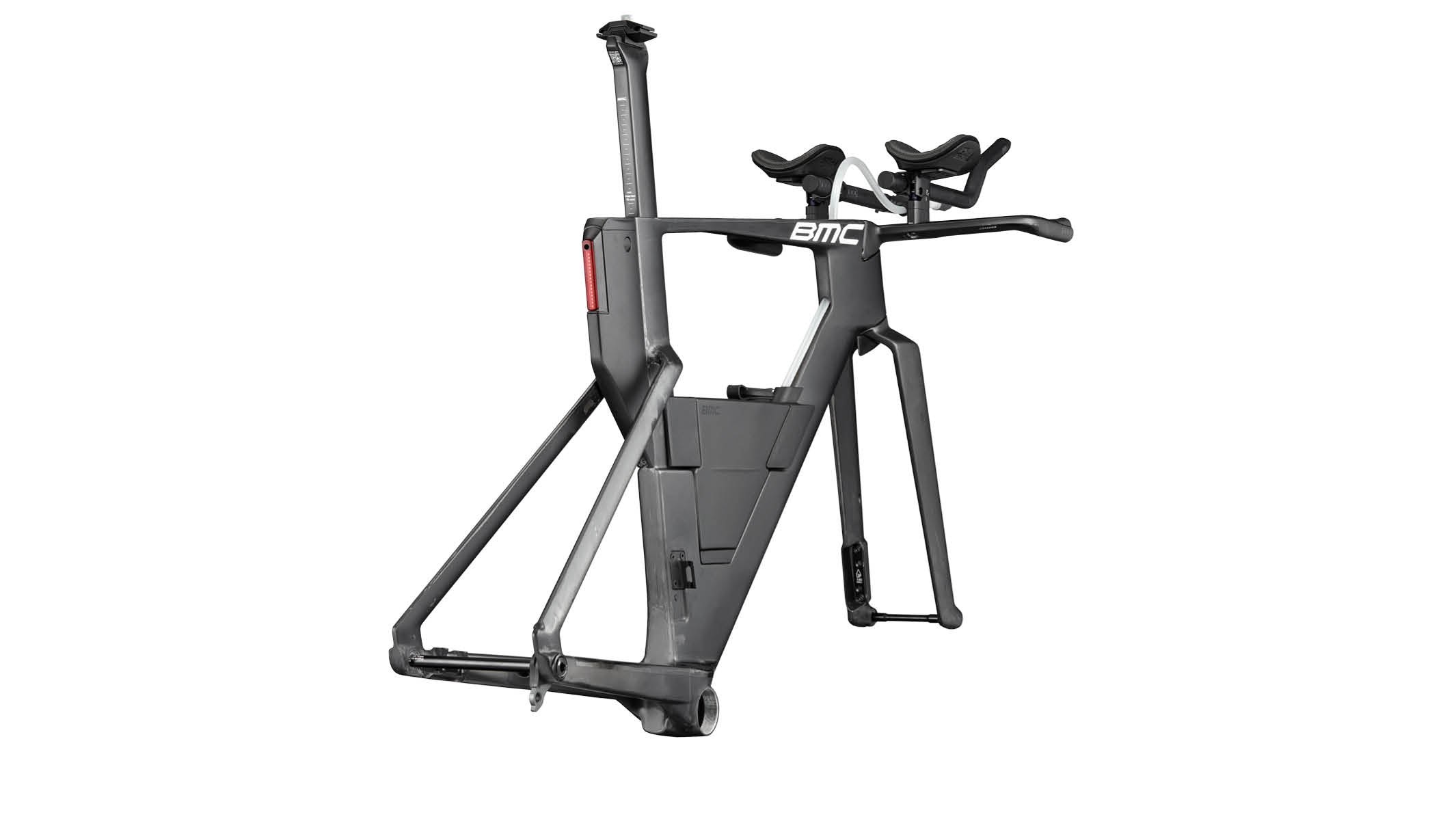

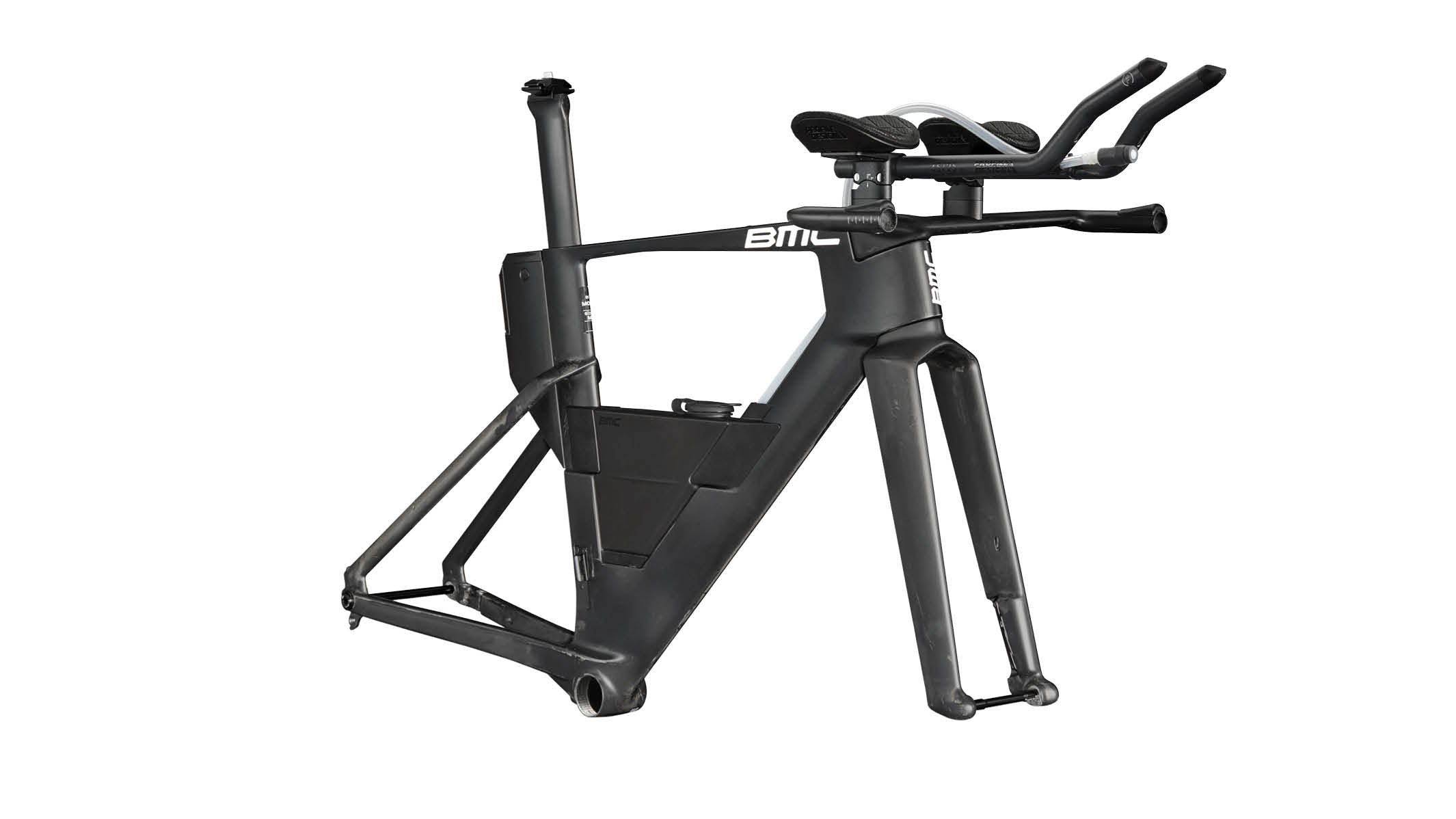

This Module comes with frame, fork, storage, seatpost, plus BMC Speedmachine Flat Cockpit, with Profile Design Aeria Ultimate with Ergo+ Armrests and SLC Aerobar Extensions, leaving the rest of the build up to your desire. The uncompromising 01 Premium Carbon layup provides the stiffness you need to push hard, paired with calm, predictable handling, allowing triathletes to stay low in the aerobars for longer.
The raw carbon finish with easy to remove decals allows easy custom paint or leave it raw for pure race focus.
All Aero
You’re only fast when you can stay aero. That principle sits at the core of the Speedmachine 01, our fastest triathlon frame engineered for sustained speed. Developed together with Red Bull Advanced Technologies, this race bike frame builds aerodynamics around adjustability.
This Module comes with frame, fork, storage, seatpost, plus BMC Speedmachine Flat Cockpit, with Profile Design Aeria Ultimate with Ergo+ Armrests and SLC Aerobar Extensions, leaving the rest of the build up to your desire. The uncompromising 01 Premium Carbon layup provides the stiffness you need to push hard, paired with calm, predictable handling, allowing triathletes to stay low in the aerobars for longer.
The raw carbon finish with easy to remove decals allows easy custom paint or leave it raw for pure race focus.
innovationStability Creates Speed
We achieved real‑world stability with refined tube profiles and steering geometry built for riding, not just measuring. Crosswinds, tight turns and technical descents demand confidence. A tri bike, with the stability and handling of a road bike.
Adaptability
A redesigned cockpit that refines your position with a wide choice of bars and generous adjustment. It adapts to you so you can hold your optimal position, while making travel, maintenance and everyday bike life simpler.
Integrated, everything
Advanced storage integration ensures riders have easy access to hydration, fuel, and essentials during extended rides. All engineered in an aero-boosting package.
Technical Overview
Frameset
Frame:
Speedmachine 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Full Mount - UDH | Flat Mount Disc | 142x12mm Thru-Axle
Fork:
Speedmachine 01 | 01 Premium Carbon | ICS Technology stealth cable routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Cockpit
Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions
Seat
Seatpost:
Speedmachine 01 | 01 Premium Carbon Aero Seatpost | 0mm, 12.5mm, 25mm Offsets
Drivetrain
Front Derailleur:
Derailleur hanger for Front Derailleur Standard (2x drivetrain - 56t max - 44.5mm chainline), Front Derailleur Standard (2x drivetrain - 60t max - 44.5mm chainline), and Cover (1x drivetrain)
Rear Derailleur:
Full Mount - UDH
Bottom Bracket:
T47 68mm Road
Brakes
Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear
Accessories
In the Box:
Fuel Tank 1200 with straw and bite valve | Bottle 400 (UCI compliant) | Rear Storage 260 | Intergrated Rear Light 25 | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
4035g | Size M as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
