Name: Teammachine R 01 Frameset
Brand: BMC
SKU: 30008119
Price: 4999.0 USD
Availability: InStock

Chameleon Petrol / Carbon

The Teammachine R 01 VAR 4 Frameset, uncompromising performance ready for an uncompromising build.

USD 4,999.00

SKU: 30008119

Size —

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":56310420898178,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30008119","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 Frameset - 47","public_title":"47","options":["47"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":4,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535103","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310420930946,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30008120","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 Frameset - 51","public_title":"51","options":["51"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535097","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310420963714,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30008121","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 Frameset - 54","public_title":"54","options":["54"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535080","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310420996482,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30008122","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 Frameset - 56","public_title":"56","options":["56"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535172","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310421029250,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30008123","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 Frameset - 58","public_title":"58","options":["58"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535264","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310421062018,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30008124","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 Frameset - 61","public_title":"61","options":["61"],"price":499900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906535257","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Taking race winning performance and offering it in an exclusive "Chameleon Petrol / Carbon" colorway, ready to be your foundation of your perfect build, the Teammachine R 01 VAR 1, gives you the option to finish your bike as you dreamt. With all the time saving aerodynamics, sprint winning power transfer, corner railing handling and road smoothing compliance of the Teammachine R 01, this "Chameleon Petrol / Carbon" frameset comes ready for the build you’ve always dreamed of. Think pro-team build for one, this lightweight frameset, developed with Red Bull Advance technology redefines what a race bike can do. Climbs, cobbles, sprints, corners? It’s got it covered and then some. Build it as you want, ride it as fast as you can.

Technology

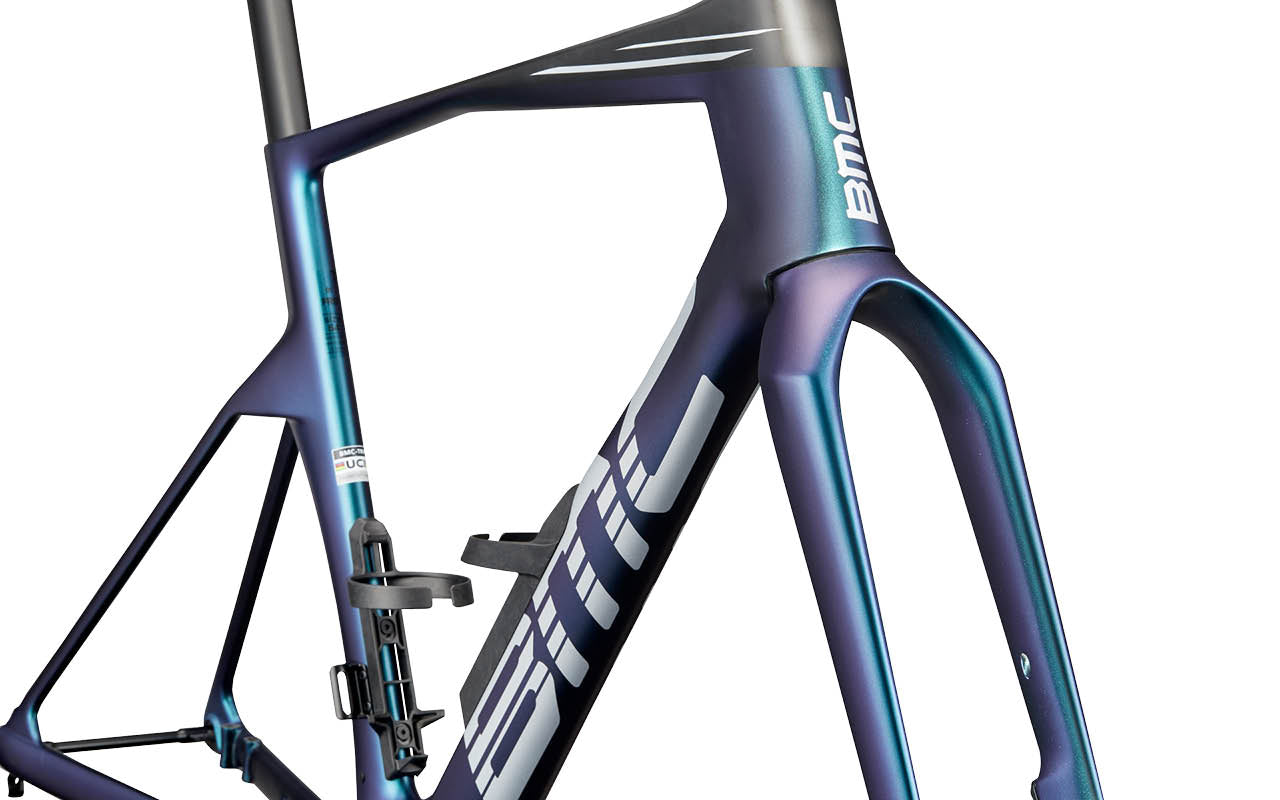

Halo Fork

To create speed, we pushed the fork legs wider, forming a distinctive ultra-wide front end. Halo shutters turbulent air away from the frame, kills aero stall and unlocks clean, usable speed.

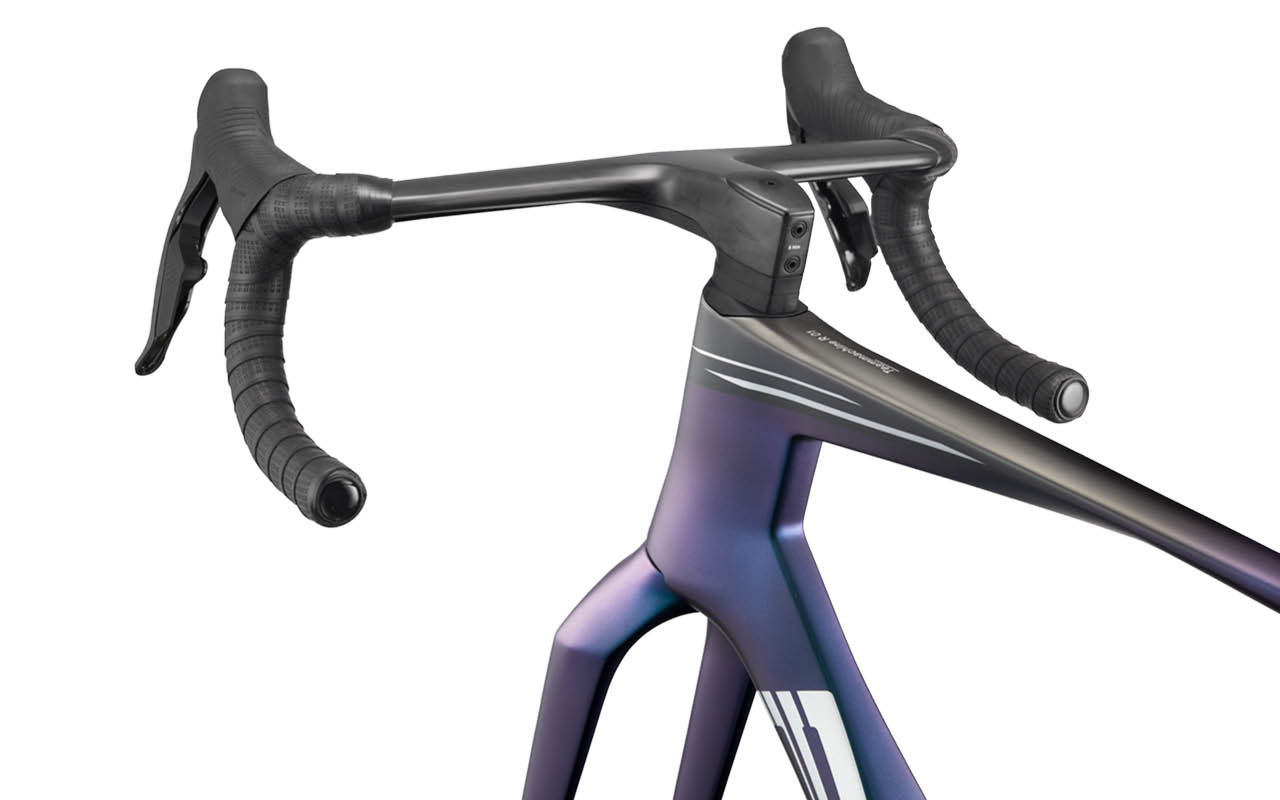

Integrated Cockpit System (ICS)

Minimal, clean, simple: the innovative functionality of the Integrated Cockpit System (ICS) is Swiss design and engineering where it counts. Hidden cables keep the front of your bike looking and feeling fast.

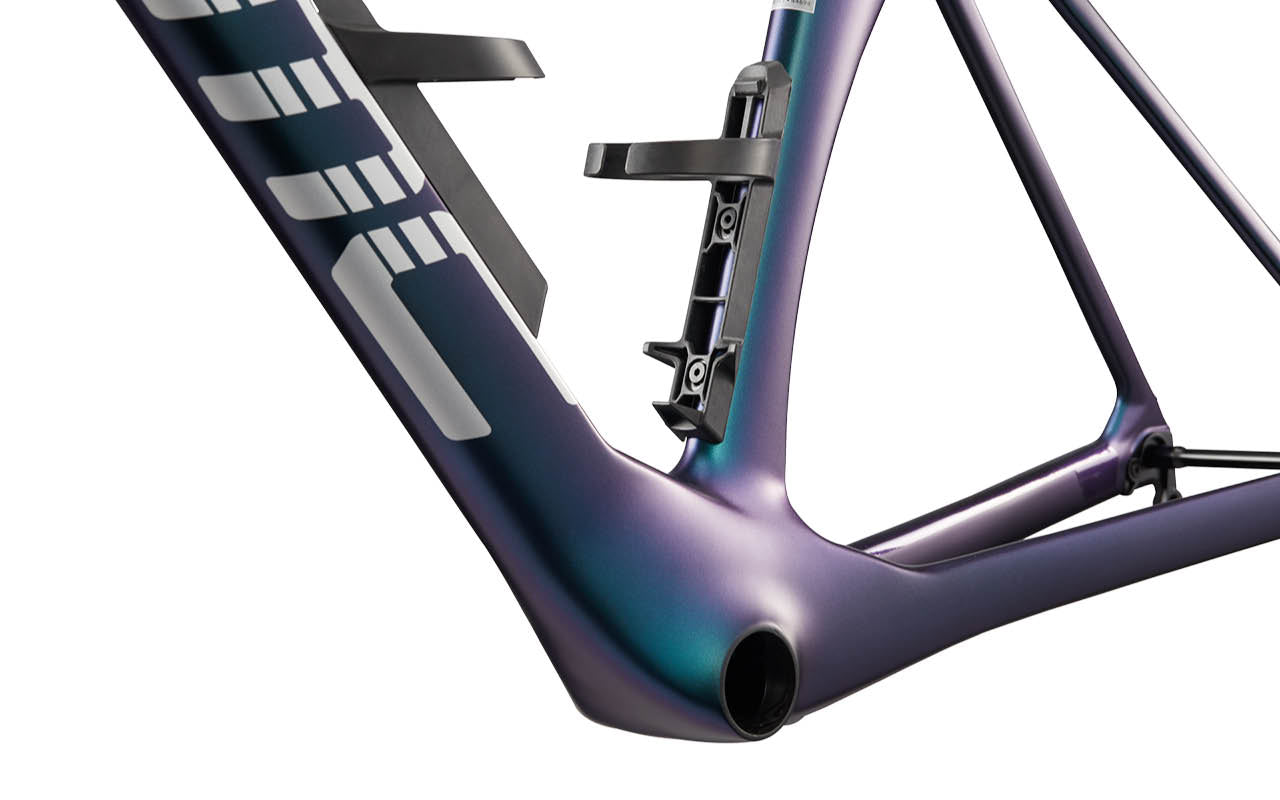

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever developed on a road bike. The reasoning? You get the cleanest air due to the surface area. UCI approved.

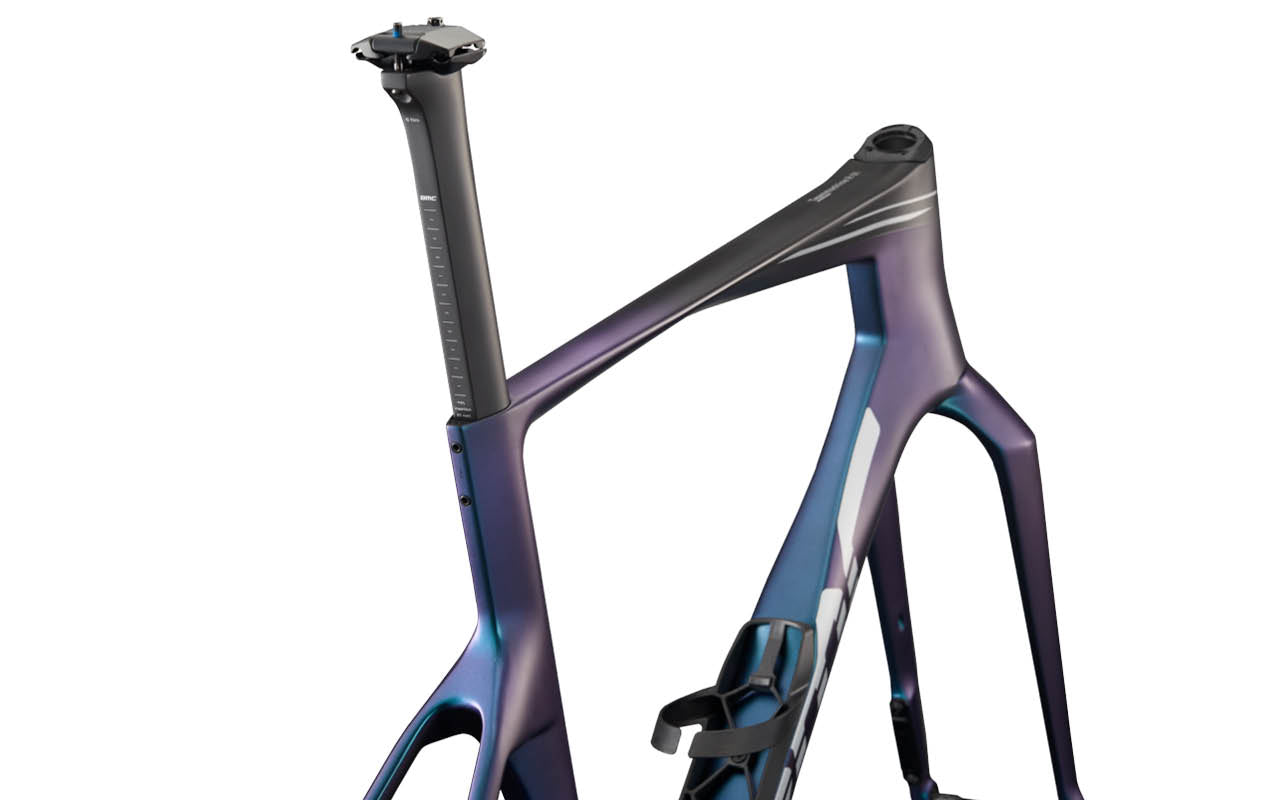

All-Aero Seatpost

A seatpost that’s slimmer, deeper, more compliant, and lighter than ever, with a clamp mechanism that’s easier to access and maintain. Also compatible with an integrated number-plate holder – making it the smartest way for race day.

Technical Overview

Frameset

Seat

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Drivetrain

Front Derailleur:
Riveted derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline)

Rear Derailleur:
BMC derailleur hangers: SHIMANO Direct Mount + SHIMANO or SRAM Direct Attachement (standard)

Bottom Bracket:
Press-Fit 86.5mm Road

Brakes

Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear

Accessories

In the Box:
Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
1810g | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	61	47	51	54	56	58
Rider Height	>190	<166	166-174	172-180	178-186	184-192
Reach	409	368	378	387	393	402
Stack	608	504	528	548	563	582
BB Drop	69	69	69	69	69	69
Fork Length	367	367	367	367	367	367
Fork Rake	43	48	48	43	43	43
Front Center	630	568	586	589	599	614
Head Tube	211	108	133	149	165	184
Head Tube Angle	72.3°	71.5°	71.5°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	73°	74°	74°	73.5°	73.5°	73°
Seat Tube	570	418	463	499	519	541
Seatpost Length	405	335	335	385	385	405
Seatpost Offset	10	0	0	10	10	10
Standover Height	836	721	755	781	799	813
Top Tube	598	515	532	552	562	582
Trail	63	63	63	63	63	63
Wheelbase	1030	968	986	989	999	1015
