Technologie
Aperçu technique
Kit cadre
Cadre:

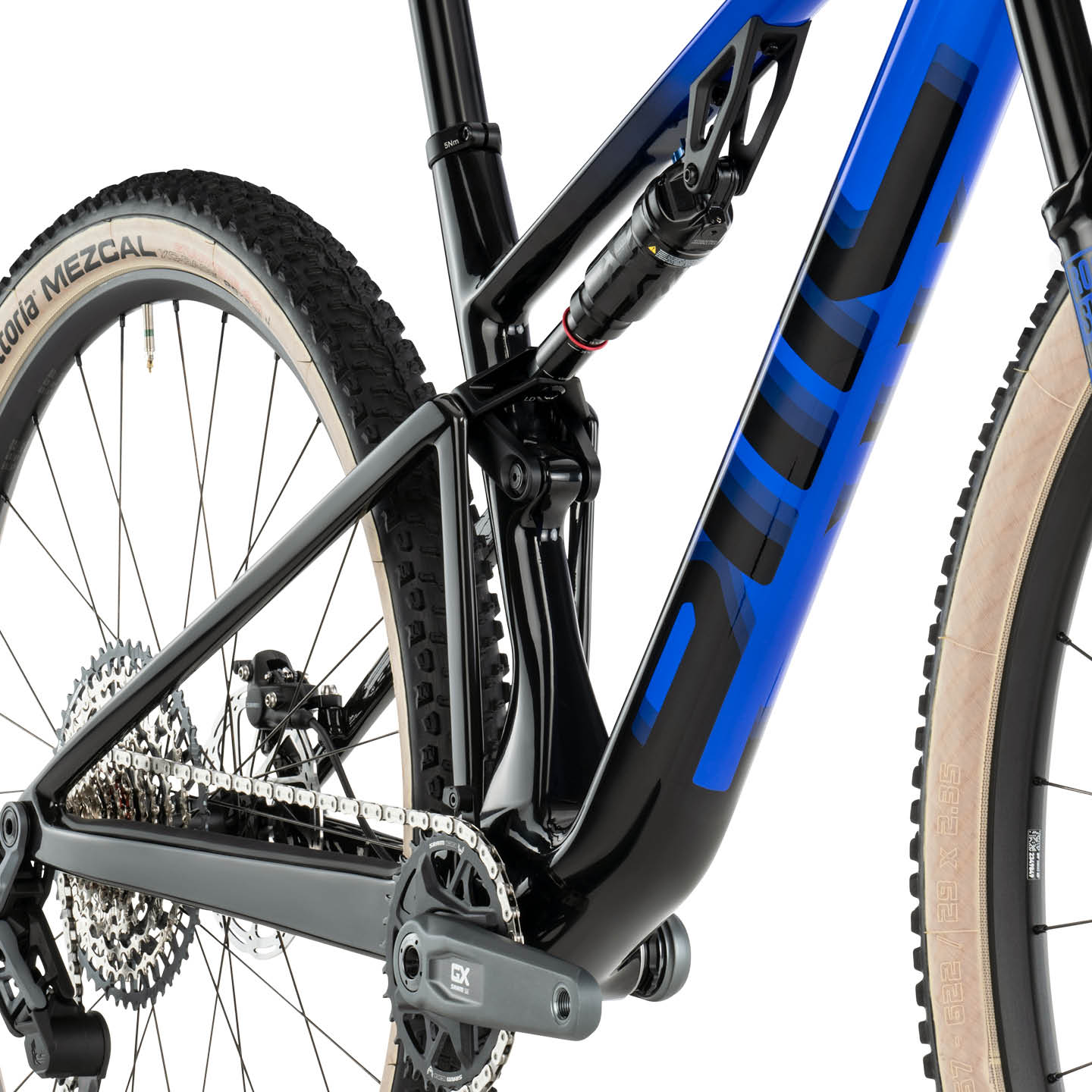

Fourstroke Carbon | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Fourche:
RockShox SID SL Select+
Suspension
Suspension Avant:
RockShox SID SL Select+
Suspension Arrière:
RockShox SIDLUXE
Blocage de suspension:
TwistLoc Lockout
Cockpit
Potence:
BMC MSM 01
Cintre:
BMC MFB 01 Carbon | 760mm
Seat
Tige de Selle:
Bikeyoke Divine
Selle:
Fizik Antares R7
Transmission
Pédalier:
SRAM GX Eagle
Plateaux:
34T
Cassette:
SRAM GX Eagle Transmission XS-1275
Taille de cassette:
10-52T
Chaîne:
SRAM GX Eagle Transmission Flattop
Dérailleur Arrière:
SRAM GX Eagle Transmission
Leviers de Vitesses:
SRAM AXS Pod Controller
Vitesses:
1 x 12
Boîtier de pédalier:
PF92 Bottom Bracket
Freins
Leviers de Frein / Étriers:
SRAM Level TLM
Disques:
SRAM Centerline Rotors
Largeur de Pedalier:
160 / 160 S-M | 180 / 160 L-XL
Roues
Jantes:
XCD-30W Carbon | 30mm Inner Width
Moyeux:
XCD-30W
Pneus:
Vittoria Mezcal | 2.35"
Information Tubeless:
Tubeless Ready Rims | Tubetype Tires
Informations supplémentaires
Espace pour les pneus:
62mm
Classification ASTM:
Level 3
Limite de poids du système:
110kg
Size | S | M | L | XL |
---|---|---|---|---|
Rider Height | <172 | 172-182 | 180-188 | >188 |
Reach | 437 | 457 | 477 | 500 |
Stack | 584 | 592 | 600 | 615 |
Bar Rise | 4 | 4 | 4 | 4 |
Bar Sweep | 8 | 8 | 8 | 8 |
Bar Width | 760 | 760 | 760 | 760 |
BB Drop | 53 | 53 | 53 | 53 |
Crank Length | 170 | 170 | 170 | 175 |
Fork Length | 513 | 513 | 513 | 513 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center | 714 | 738 | 762 | 791 |
Head Tube | 83.84 | 93.5 | 101.25 | 117.58 |
Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
Rear Center | 432 | 432 | 432 | 432 |
Seat Angle | 76.7 | 76.7 | 76.7 | 76.7 |
Seat Tube | 420 | 440 | 470 | 510 |
Seatpost Drop | 80 | 80 | 100 | 100 |
Standover Height | 725 | 725 | 725 | 725 |
Stem Angle | -5 | -5 | -5 | -5 |
Stem Length | 50 | 60 | 60 | 70 |
Top Tube | 574 | 597 | 621.2 | 649.23 |
Trail | 113 | 113 | 113 | 113 |
Wheelbase | 1139 | 1171 | 1188 | 1218 |
